Applicable models: Hydraulic excavator rotary drive system (5–8 ton capacity).

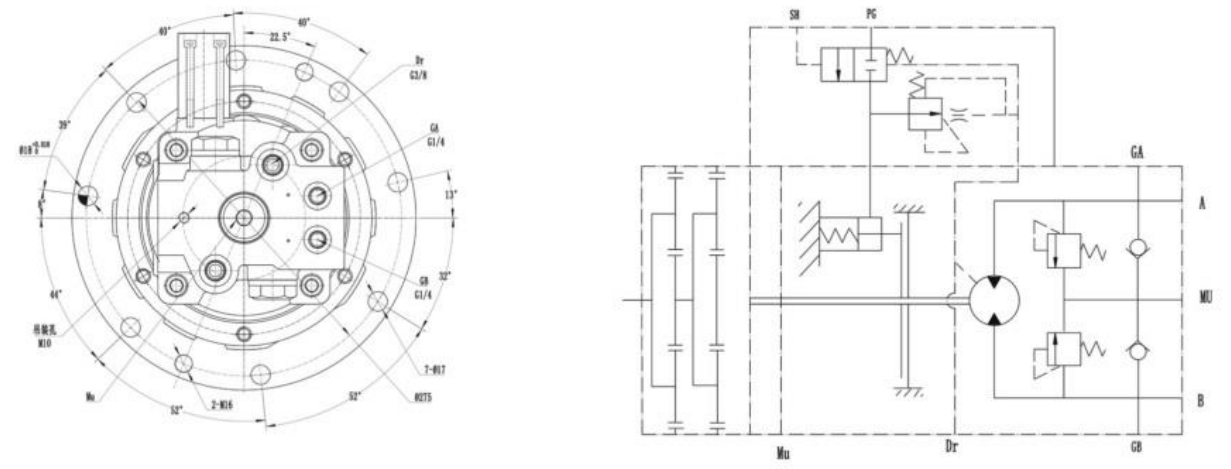

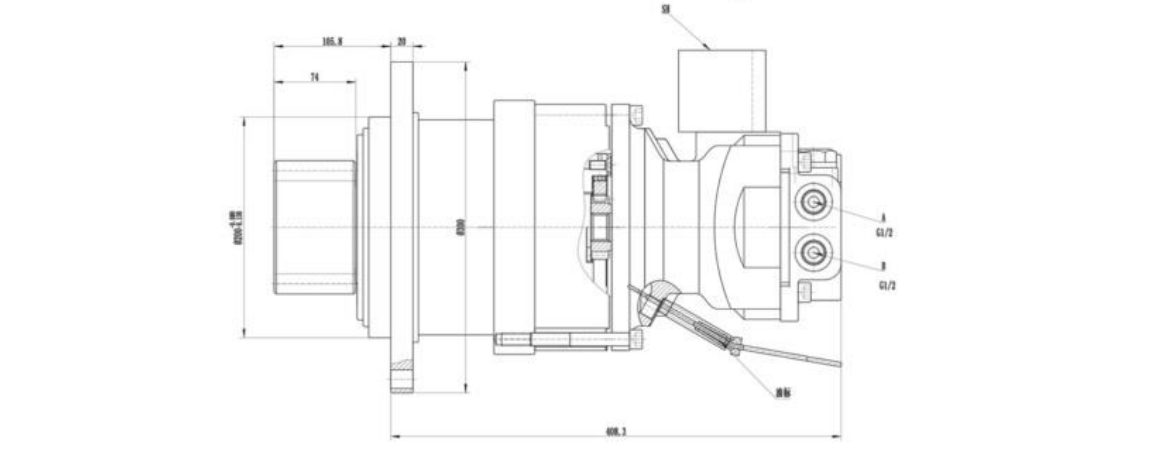

Frame mounting holes: 8–ø17 (equal/unequal spacing)
Vertical shaft large teeth: (11T/12T/13T)
DH55/60, R60-7, XE60, Lingong 60, DH80. R80-7, SY75 – replaces SG025.
Technical Perameters:
model (Model) | displacement (ml/r) | Industrial Horsepower | input flow rate (L/min) | Theoretical output torque (N.m) | reduction gear ratio (5) | Output speed (r/min) | Oil temperature range (℃) | rotation direction (Rotation) |
JMF29 | 29 | 21.5 | 60 | 1932 | 19.46 | 105 | -20℃~80℃ | two-way |
