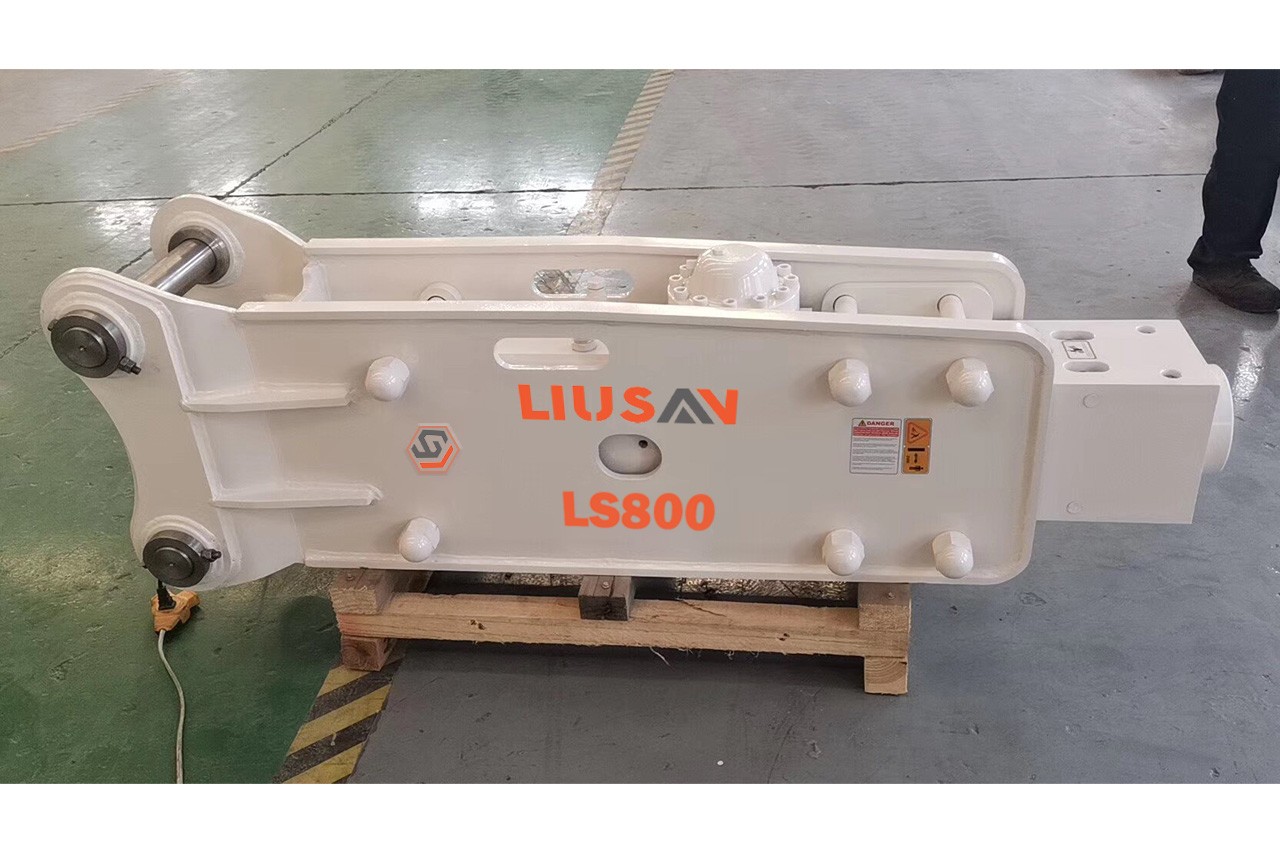

LS800

Caroline WhatsApp: +86 133 7645 7172

GET A QUOTE

Start order request

Account Number
none
none
none
none
none
none

Total weight:

842 kg

Carrier weight:

10-15 ton

Chisel diameter

100mm

Specifications:

0000*000*000

Minimum Order Quantity:

1 set

OEM / ODM:

Negotiation

Packaging Details:

Export Wooden Cases

Delivery Time:

5-7 Workdays

Payment Terms:

L/C, T/T, Western Union

Supply Ability:

1200 Sets per year

Product Parameters

100mm tool SB50 Hydraulic Breaker For 10-15 ton Excavator Rock Drill, 2 Chisel

Specification name	Model	LS800
Host weight	kg	475
Total weight (including drill rod)	kg	842
Specifications (LxWxH)	mm
hydraulic oil flow	1/min	80- 110
hydraulic oil pressure	kg/cm2	150- 170
Strike frequency	bpm	350-700
Drill rod diameter	mm	100
Equipped with vehicle weight	ton	10-15

Introduction

Hydraulic rock breaker is powered by an excavator or loader pump provides pressure oil, it can dig a fundamental role in building a more efficient clean up floating rock crevice in the rocks and soil. Optional hydraulic hammer excavator model is based on the principle of the operating environment to choose the most suitable hydraulic rock breaker
Hydraulic breaker has become an important tool for the job, it was installed in the hydraulic breaker backhoe loaders (also known as two busy) or wheel loader for crushing operations.

Description

1. Selected raw material – high quality heavy duty wear resistant steel
2. Hydraulic-gas system, increase stability
3. High-quality and durable wear parts
4. Advanced manufacturing facilities, introduced from Korea
5. High energy and impact frequency (high performance)
6. High-performance optimized hydraulic unit
7. Low maintenance, less breakdown, long using life
8. Fully enclosed housing with robust structure

		LS450	LS530	LS600	LS750	LS850	LS1000	LS1250	LS1350
Model	Unit	SB20	SB30	SB40	SB43	SB45	SB50	SB60	SB70
Suitable Excavator	Ton	1.2-3.0	2.5-4.5	4-7	6-9	7-14	10-15	15-18	18-26
Operating Weight	Kg	70	132	275	418	561	842	1381	1609
Required oil flow	I/min	20-30	25-50	40-70	50-90	60-100	80-110	90-120	100-150
Operating pressure	Bar	90-120	90-120	110-140	120-150	130-160	150-170	150-170	160-180
Impact energy	Joule	271	406	677	1017	1355	2033	2711	3423
Impact rate	Bpm	700-1200	600-1100	500-900	400-800	400-800	350-700	350-650	350-500
Hose diameter	Inch	1/2	1/2	1/2	1/2	3/4	3/4	1	1
Noise level	db	107	109	109	115	112	114	115	120
Chisel Diameter	mm	45	53	68	75	85	100	125	135

LS1400	LS1400A	LS1500	LS1550	LS1650	LS1650F	LS1750	LS15G	LS20G
SB81	SB81A	SB100	SB121	SB131	SB131F	SB151	SB15G	SB20G
18-26	18-26	25-33	28-35	30-40	30-40	35-40	12-18	18-25
1950	1805	2214	2655	2735	3289	4167	1406	1698
120-180	120-180	150-190	180-240	200-260	200-260	210-290	115-150	125-160
160-180	160-180	160-180	180-200	180-200	180-200	180-200	160-180	160-180
4067	4067		6779	8812	10846	12202	2646	3692
350-500	350-500	350-700	300-450	250-400	250-350	250-350	350-650	350-600
1	1	1	1-1/4	1-1/4	1-1/4	1-1/4	1	1
118	118	120	123	123	124	125	114	120
140	140	150	155	165	165	175	120	135


Application

Excavator rock breaker can be widely used to breaking rock, paving road, building demolition,mining,dismantling engineering and special engineering etc.

FAQ

1. Are you a manufacture?
Yes, we are.

2. What’s the MOQ and payment ?
MOQ is 1 set.
T/T, L/C,west union is accepted. Other terms can also be negotiated.

3. How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
It is 7-15 days if the goods are not in stock, and it's according to quantity.

4. Can you produce according to customers' design?
Sure,we are professional manufacturer,OEM is available.
