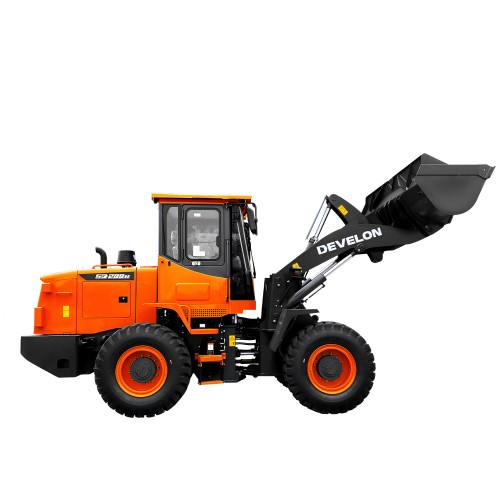

SD200

GET A QUOTE

Start order request

Engine Model:

Weichai WP6G125E22

Operating Weight:

10.4T

Bucket capacity:

1.7m3

Fuel tank:

150L

Tire Size:

17.5 - 25 - 12 PR

Minimum Order Quantity:

1 set

Price:

Negotiation

Packaging Details:

Export Wooden Cases

Delivery Time:

5-7 Workdays

Payment Terms:

L/C, T/T, Western Union

Supply Ability:

1200 Sets per year

Product Parameters

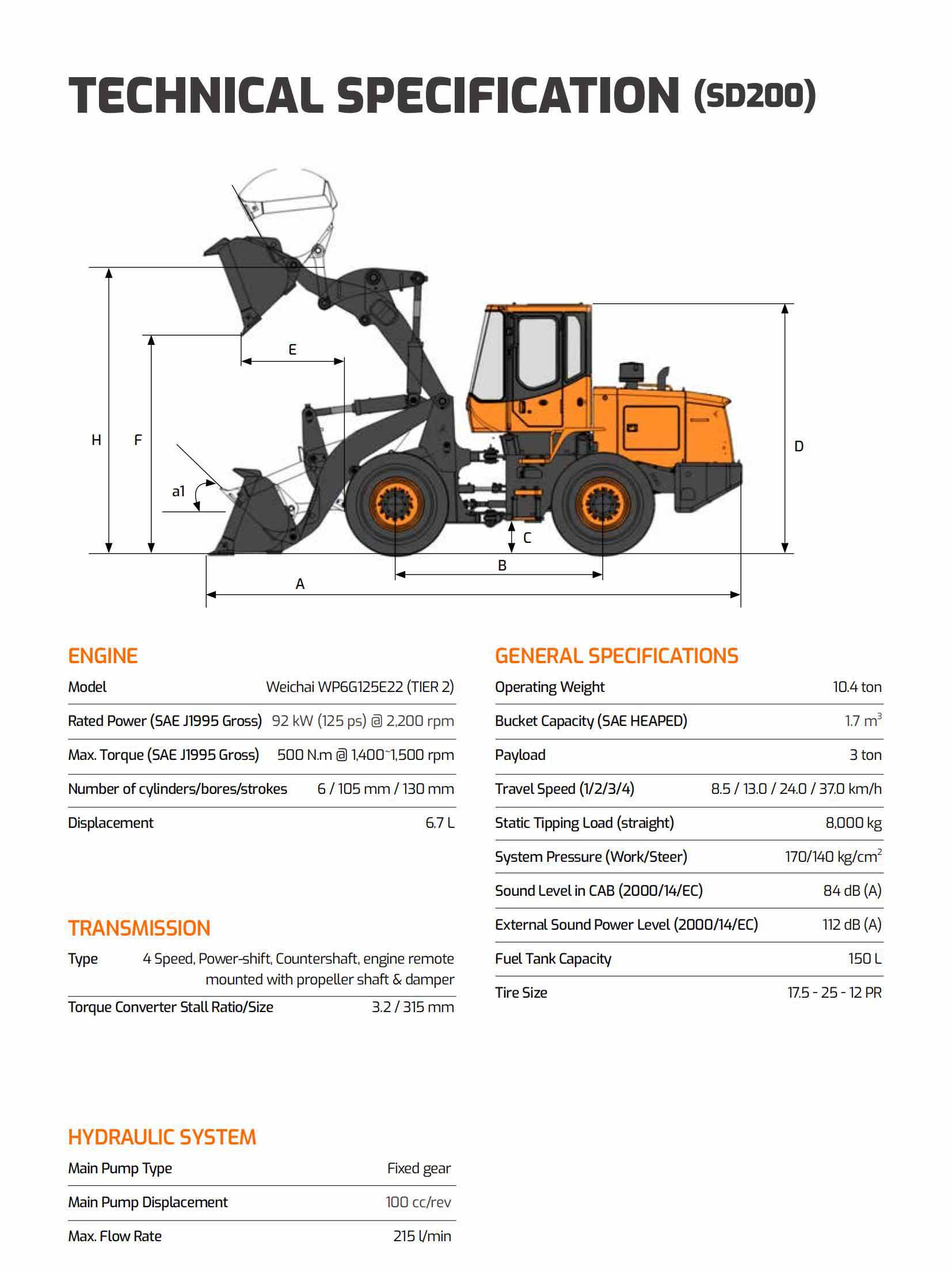

TECHNICAL SPECIFICATION (SD200)

ENGINE		GENERAL SPECIFICATIONS
Model	Weichai WP6G125E22 (TIER 2)	Operating Weight	10.4 ton
Rated Power (SAE J1995 Gross)	92 kW (125 ps) 2.200 rpm	Bucket Capacity (SAE HEAPED)	1.7m2
Max. Torque (SAE J1995 Gross)	500 N.m @ 1,400*1,500 rpm	Payload	3ton
Number of cylinders/bores/strokes	6/105 mm/130 mm	TravelSpeed (V/2/3/4)	8.5/13.0/24.0/37.0 km/h
Displacement	6.7L	Static Tipping Load (straight)	B.000 kg
		System Pressure (Work/Steer)	170/140kg/cm2
		Sound Level in CAB (2000/14/EC)	84 dB (A)
		External Sound Power Level (2000/14/EC)	112 dB (A)
TRANSMISSION		Fuel Tank Capacity	150L
Type	4 Speed, Power-shift, Countershaft, engine remotemounted with propeller shaft & damper	Tire Size	17.5-25-12 PR
Torque Converter Stall Ratio/Size	3.2/315 mm
