performance parameter
| Total weight | 24500kg |
|---|---|
| Volume of Bucket | 1.2m3 |
| Engine power | 140KW |
| Swing speed | 10.7rpm |
| Travel speed | 5.9/3.2km/hr |
| Ground pressure | 0.46Kpa |
| Gradeability | 28i |
| Digging force | 156.6KN |

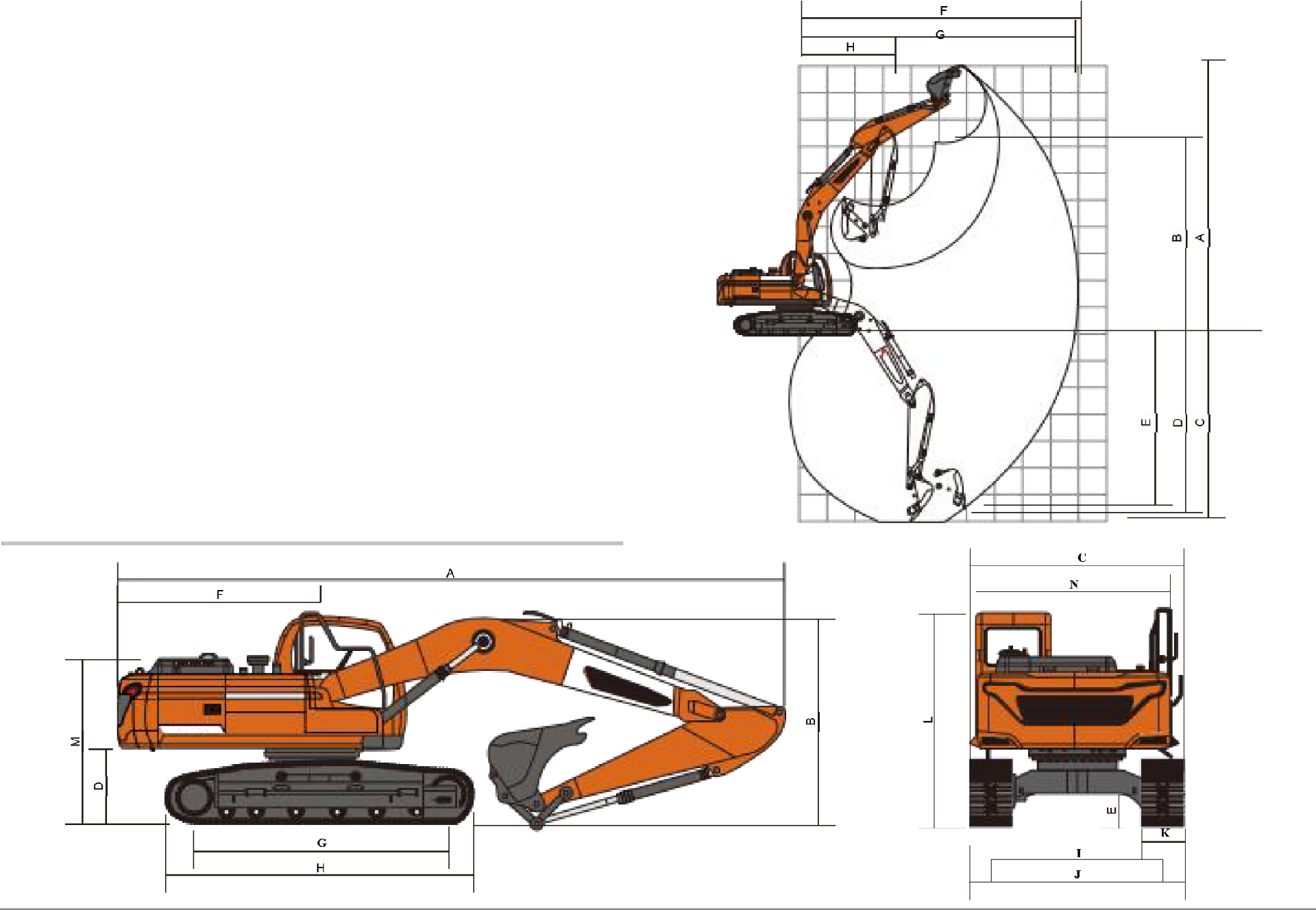

| Total width | 3090mm |
| Shipping length | 9600mm |
| Total height of transport boom | 3005mm |
| Cab height | 3000mm |
| Turning radius at the end of the platform | 2794mm |
| Ground clearance | 475mm |
| Counterweight ground clearance | 1096mm |
| Gauge | 2400mm |
| Total width | 2990mm |
| Total length of running gear | 4440mm |
| The total width of the crawler undercarriage | 2990mm |
| Shaft diameter | 3650mm |
| Track shoe width | 600mm |
| Max digging depth | 6592mm |
| Max vertical digging depth | 3929mm |
| Max digging height | 9616mm |
| Max loading height | 6830mm |
| Max dig radius distance | 9873mm |
| Min radius of swing | 3560mm |
